Wer zwei Paar Hosen hat, mache eine zu Geld und schaffe sich dieses Buch an. Who owns two pair of trousers, should make one to money and buy this book. G.C.Lichtenberg The book summarizes more than 25 years of experience in design of beam diagnostic elements, implementation of application software provided for operating of the GSI-accelerators. | Design of Beam Diagnostic Elements for Particle Accelerators
Electrode systems in Stripline technik, residual gas ionisation monitors, capacitive, inductive pick ups, coaxial Faraday cups, Faraday cups for Electrons, emittance measuring systems, BPM-monitors, time of flight systems (TOF), ...
Signal Calculations considering relativistic Effects- Fourier analysis of signals, bunch shape calculations considering also cable dispersion, response of BPM's, calculation of lead Shielding for Faraday cups (considering pair production), ...
Numerical Calculations concerning thermal Load on Materials Based on Finite Difference Method (FD), considering: DC-beams, pulsed beams, 2D as well as 3D geometries of the beam stopper, particles with very low penetration depth (heat deposition on the surface), particles with high penetration depth considering energy loss in various materials along path, graphic presentation of results in EXCEL diagrams,... - Mathcad Programming and Calculations
- Using MATHCAD 15 a manifold of programs to solve mathematical-physical problems has been implemented. Furthermore programming according to customers problems can be performed on request.
- Implementation of EXCEL-VBA-Programs
- Due to the flexibility of EXCEL-VBA in connection with the excellent EXCEL graphics implementation of numerical procedures to solve thermal load on materials due to energy loss of particles has been implemented. Furthermore programming according to customers problems can be performed on request.
- Preparation of scientific reports using Scientific Workplace (TEX)
- Many books as well as scientific reports are written in TEX. On request P=MT² can help to prepare papers for publication or internal use in a company, research center, etc.
- Consulting
- P=MT² offers consulting in all topics mentioned above. This may be in written form or by paticipation on technical discussions.

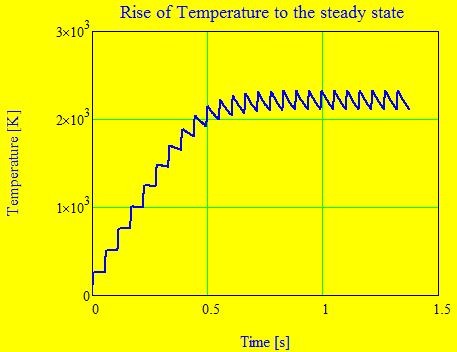

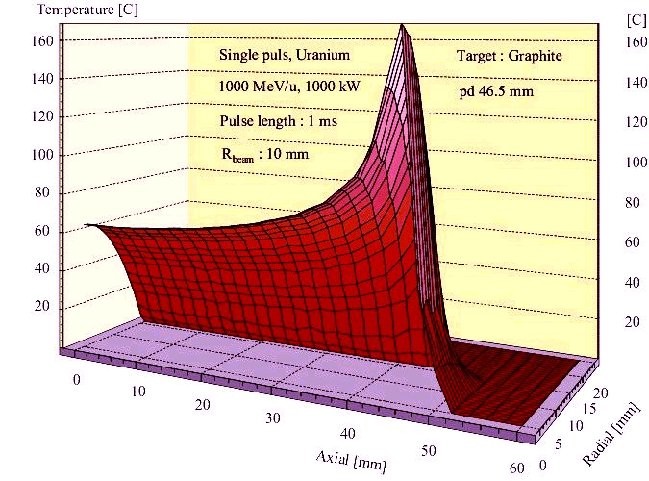

| Example for calculated temperature rise in material by energy loss of high energetic heavy ions. MATHCAD calculation of the thermal load on a profile grid due to energy loss of a high power ion beam. |
